The Planispheric Astrolabe

The planispheric astrolabe is a powerful astronomical calculator with a very clever design. It is composed of several fix or mobile disks, rulers and has fine scales engraved on both sides.

History of the astrolabe

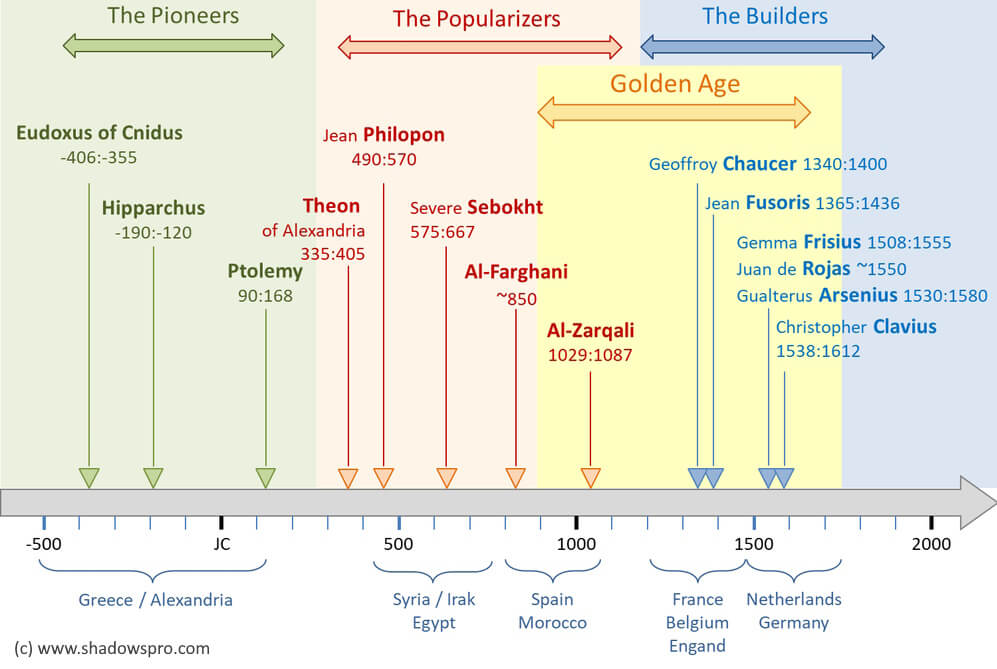

We can estimate that the first astrolabe was made 2500 years ago, although no clear inventor can be identified. We can distinguish three periods:

The first one, that we can call the pioneers, spans over five centuries, during the ancient world, between Greece and Egypt. Three well-known authors established the mathematical and geometrical bases of the astrolabe. Ptolemy, in particular, described in details the stereographic projection in his book the planisphere. This projection is the basis for planispheric and universal astrolabes.

The second period, dominated by the popularizers, saw the publication of the first treatises describing the drawing of an astrolabe and its use. Knowledge spread progressively to the West of the Mediterranean Sea and the South of Europe.

The third period is the age of astrolabe builders, who were craftsmen as well as scientists. They allowed explorers to bring cheaper and more accurate instruments with them.

We can say that the Golden Age spanned from the 10th to the 18th centuries.

History of the astrolabe

Components of a planispheric astrolabe

Planispheric astrolabe

1 - the throne makes it possible to easily hold the astrolabe vertically when pointing a star or the Sun with the alidade. The throne on old astrolabes is usually nicely decorated and is equipped with a ring or a cord.

2 - the limb is scaled in hours and in degrees by quadrant. It gives a value when pointed with the ruler. It is part of the mater that holds the other components.

3 - the plate is engraved with a coordinate system suitable for a given latitude. An astrolabe was usually provided with 2 or 3 plates engraved on both sides for different latitudes. The plate shows circles for tropics and for the equator, circles of altitude above the horizon and circles of azimuth, arcs of twilight and sometimes arcs of unequal hours.

4 - the rete can rotate around the axis and has pointers for the main stars. The ecliptic circle is scaled in ecliptic longitude and usually marked with Zodiac signs.

5 - the ruler makes it possible to point a value on the limb or a position on the plate.


This drawing of planispheric astrolabe was made with Shadows Pro


Construction of an astrolabe

An astrolabe is a stack of elements on the same axis. On the mater (main structure), we add a plate, then the rete and the ruler, and finally everything is locked with a dowel pin.

Shadows Pro allows you to print all elements to scale 1. You then glue the paper on cardboard or on wood and cut the parts according to the drawing. It is also possible to export the drawing to a CAD file (DXF or WMF) in order to drive a milling machine or an engraving machine.

Otherwise, if you prefer not to do it yourself, visit the page Links on astrolabes to find references of astrolabe makers which will be able to create a genuine piece of art in brass or bronze.

Watch in video the assembly of elements of a planispheric astrolabe

Assemblage of astrolabe components

Old instruments

Old astrolabes can be seen in private collections of some museums. Most of them are dated between the 13th and 19th centuries. Some are really nice objects with fine engravings and tiny sculptures on the throne.

French astrolabe from 1560  Rete of a French astrolabe

Close view of the throne on an astrolabe from 1573 built by Arsenius  Detail of a modern astrolabe in copper, from 1920  Rete of a Persian astrolabe from 1660


Principles

An astrolabe is an astronomical calculator. It allows the calculation of sunrise and sunset hours, hour of meridian crossing, altitude of culmination, azimuth of sunrise/sunset, right ascension or declination, and much more.

Learn more about astrolabes in the User Manual


Stereographic projection

The stereographic projection, used in the planispheric astrolabe, projects a point of the celestial sphere on the equatorial plane, seen from one of the poles. For the northern hemisphere, the center of projection is the south pole; for southern hemisphere it is the north pole.

Projection of a point on the equatorial plane
Projection of the altitude circles on the astrolabe

Above (left), the point P of the sphere is projected to P' on the equatorial plane. Declination circles are projected as concentric circles (equator, tropics). Altitude circles are projected as shifted circles with decreasing radii a altitude increases (right).

The projection is usually limited to the Capricorn tropic circle, which forms the outer circle of the astrolabe plate.




Continue with next page: The Universal Astrolabe
